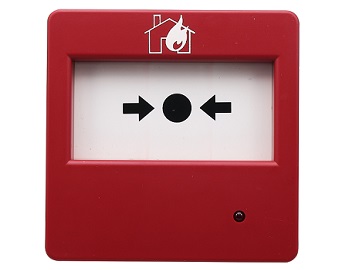

A modern stylish EM921 Manual Call Point designed to provide greater aesthetic appeal. A low profile surface mounting MCP blends in with today's modern architectural styles. The EM921 MCP is ideal where emergency situations are identified and require an immediate evacuation.

The EM921 range offers improved features for both the end user and the installer. A single maintenance tool provides access to test, reset and release the lid to change the glass or reset the element. The EM921 is fully compatible with all conventional systems available on the market.

Patent:
U.K: 0800494.7
Taiwan: 94144717
China: 200820002260.2
Spain: U200800340

Product Benefits

• EN 54-11: 2001 Certified
• Clearly visible alarm signal indication
• Anti-tamper facility
• Easy installation and maintenance

Specification

Cable Termination :	0.5 1.5 mm2
Maximum Voltage :	35 VDC
Current Ratiing (switch only) :	2 Amps
Humidity :	0-95% non-condensing
Operating Temperature:	-10°C to + 55°C
Storage Temperature:	-10°C to + 55°C



EM921 Base Range

Model No.	Model Description
EM921B1	Standard MCP mounting base (Height: 28 mm)
EM921B2	Taller MCP mounting base (Height: 40 mm)
EM921B3	The taller MCP mounting base (Height: 55 mm)



Product Range

Model No.	Model Description
EM921	Conventional manual call point with LED
EM921-F	Conventional manual call point with flashing LED
EM921-TC	Conventional manual call point with LED and transparent cover
EM921-FTC	Conventional manual call point with flashing LED and transparent cover
