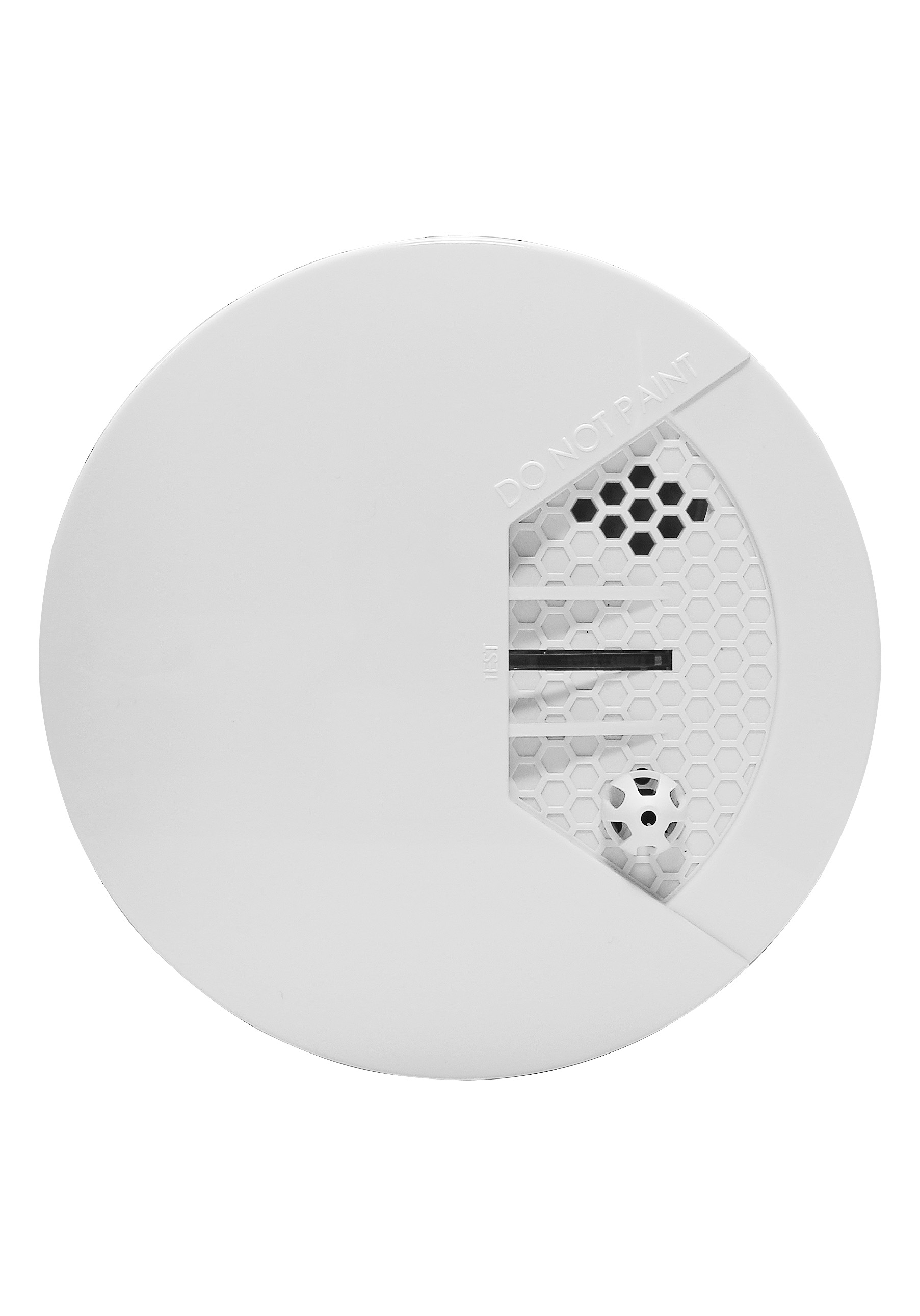

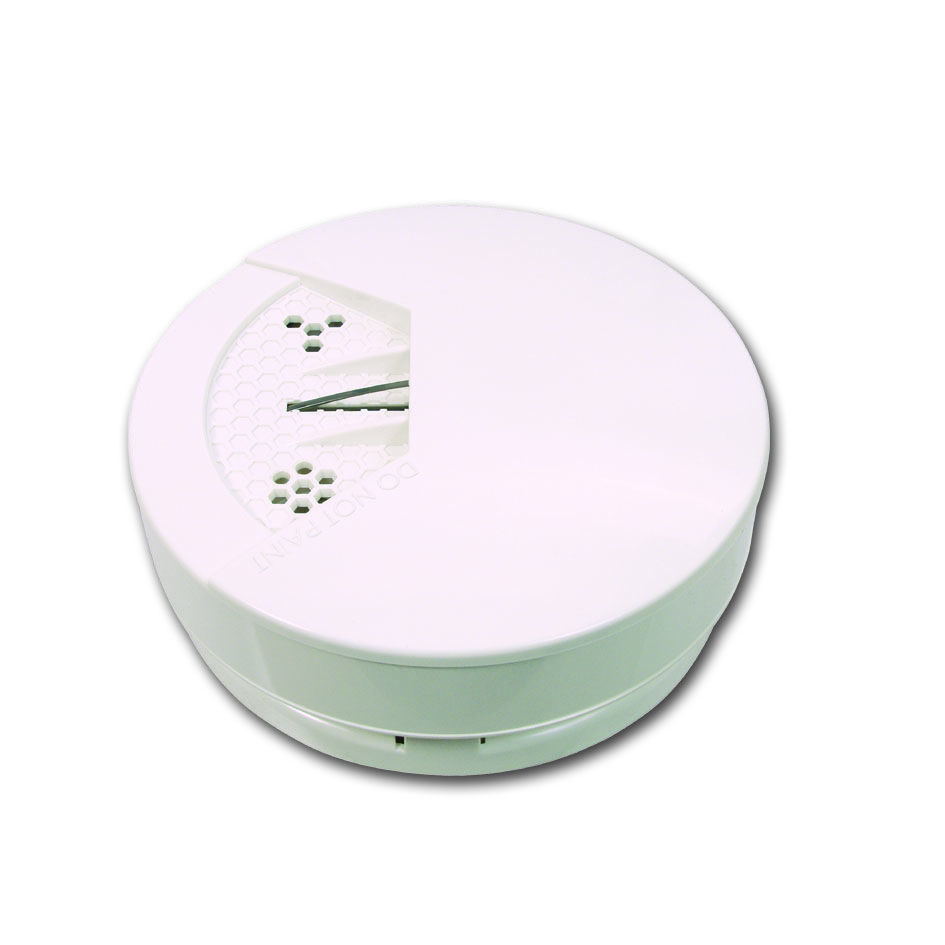

SD360 Series 3V Smoke Alarm
SD360 optical smoke alarm is designed to meet the needs of applications of radio linked operating systems. Not only the alarm offers aesthetically appealing professional design and seamless operation, it also comes with GPIO output to be integrated with RF module. SD360 is fully loaded with features and has a 10-year Lithium battery option.
Approvals

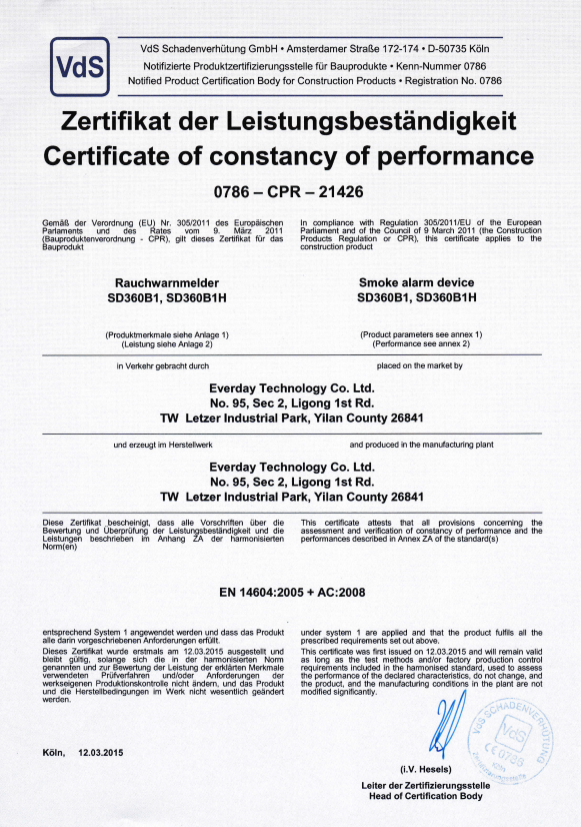

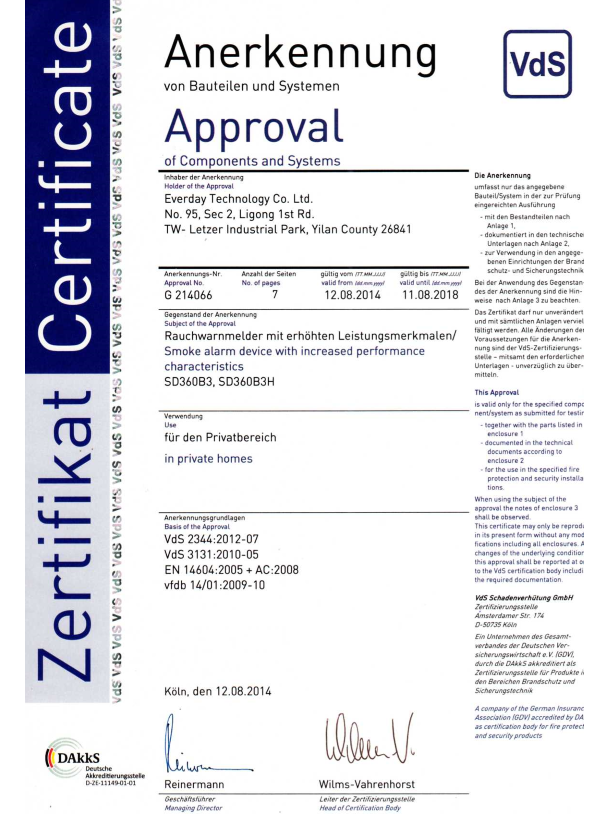

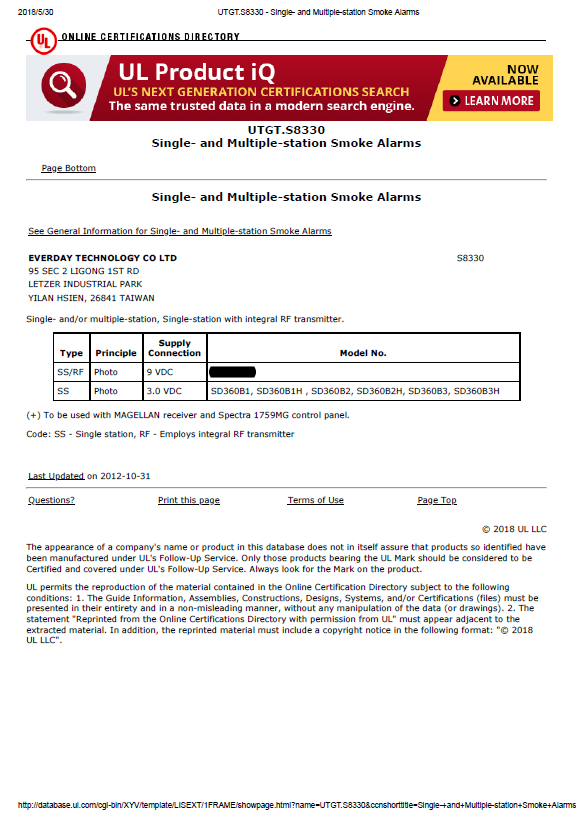

UL217 Listed, UL268 Recognized Component, EN14604:2005
Features and Benefits
- More options on battery types with longer life time
- Removable smoke chamber for easy maintenance
- Extra room to install customer's RF module
- Self-diagnostic sensor test
- Silence function
- Fully supervised for low battery and malfunction
- Manual test button helps to verify battery status and alarm operation
- Easy to install, move and maintain
- Aesthetically appealing professional detector design
Alarm Types
| Model | Battery Life | Battery Type | Description | Approval |
| SD360A1 | 3 years | DL123A/CR123A | 3V battery powered smoke alarm, without RF interface | EN14604 |
| SD360A3 | 10 years | CR17450E-R | 3V battery powered smoke alarm, without RF interface | EN14604 |
| SD360B1 | 3 years | DL123A/CR123A | 3V battery powered smoke alarm, with RF interface | EN14604,UL217,UL268 |
| SD360B1H | 3 years | DL123A/CR123A | 3V battery powered combo smoke / heat alarm with RF interface | EN14604,UL217,UL268 |
| SD360B3 | 10 years | CR17450E-R | 3V battery powered smoke alarm, with RF interface | EN14604,UL217,UL268 |
| SD360B3H | 10 years | CR17450E-R | 3V battery powered combo smoke / heat alarm with RF interface | EN14604,UL217,UL268 |
| Specifications | Single Station Smoke alarm |
| Battery Power | Rating Voltage: DC 3V lithium battery |
| Sensitivity & Alarm Pattern UL217 | 1.31%ft~2.28%/ft ; Temporal Three Pattern |
| Sensitivity & Alarm Pattern EN14604 | 0.105 dB/m~0.145 dB/m, Temporal Three Pattern |
| Heat Sensitivity &Alarm Pattern | 57ºC~65ºC ; Temporal three Pattern |
| Standby Current | SD360: max. 15uA RF module: max. 10uA |
| Start Current | Max. 3.5 mA |
| Alarm Current | SD360: max. 100mA RF module: max. 60mA |
| Relative Humidity | 10% to 85% RH |
| Temperature Range | 0ºC to 49ºC (32ºF to 120ºF) |
| Dimensions | 120mm (D) x 53mm (H) |
