COMING SOON - Indoor Air Quality Monitor

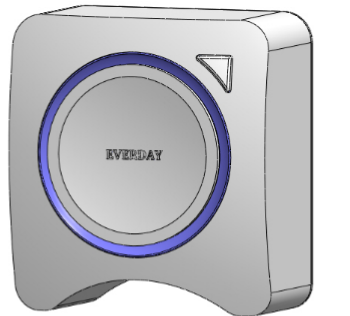

The indoor air quality monitor (IAQ) is a product of fully integrated PM2.5, TVOC, CO2, ambient temperature and humidity in a compact size of 90mm x 90mm x 44mm. IAQ can be sensed rapidly and regularly. The invisible air quality is revealed by its breathing LEDs, different colors stand for different severe conditions. In addition, via the smart UART protocol design, this product can be easily upgraded to an IoT/smart home device which may provide Bluetooth Wi-Fi, ZigBee, Z-Wave, and other wireless communication abilities. Users can directly use APP inside smart phones to check the air condition surrounding them, which protects users from pollution exposure intelligently.
Features and Benefits
-
Easy RF module integration available for IoT application via UART connection, enabling OEM customers to integrate their products within shorter time to market
-
Monitor the indoor air quality including PM2.5, TVOC, CO2, temperature, and humidity
-
Auto detection to check the ambient air condition, to help users keep away from pollution exposure intelligently
Specifications
| Dimension | TBD | |
| Operation Temperature | 0~45°C | |
| Power | Micro USB Adapter 5V-1.0A | |
| Sensors | PM2.5 |
Min. detectable particle ≥ 1 µ m Min. detectable density = 10 µ g/m3 Range: 0 - 300 µ g/m3; Resolution: 1.0 µ g/m3 |
| TVOC |
Range : 0 - 1000ppm Resolution : 1ppm |
|
| CO2 |
Non-dispersive infrared (NDIR) sensor Range: 0 - 2000ppm Resolution: 1ppm |
|
| Temperature | Range: -40°C to 125°C, Resolution: 0.5°C | |
| Humidity | Relative Humidity %; Range: 0 - 100%, Resolution: 1.0% | |
| Communication | UART port available for RF modules | |
